Hi there,

Ever used the out-of-the-box Code Search, for example using Studio or SNUtils? And noticed that it will return a lot, though you might miss some artifacts? For example you will never find results regarding Email Scripts, or results regarding the message_html field of Notifications? That's correct, and... you can easily do something about it yourselves

Let's have a closer look!

Code Search

Some customers might use a custom code search, which can be fine of course. Though out-of-the-box ServiceNow also has a nice Code Search functionality. I am noticing that this functionality is not that known by people in the ServiceNow eco-system while this is already out there for years, or people mentioning that the Code Search returns limited results.

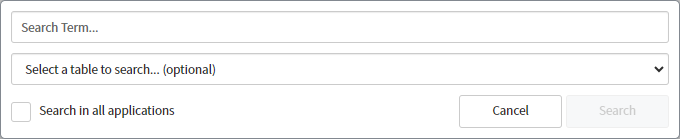

What is the Code Search that I'm mentioning? Here is an example of Code Search within Studio:

And here the same Code Search, only then used by SNUtils:

You might come up with some more places in ServiceNow where Code Search can be used.

Code Search Tables and Fields

One of the nice things about the out-of-the-box Code Search from ServiceNow, is that the Tables and Fields included in searches are accessible for every admin and easily configurable! Basically the Tables and Fields are stored in table... "Code Search Table". Records contain the table name, and a comma-separated list of fields from that table to include in the search.

Good to mention, is that the records in the Code Search Table are associated with a parent "Code Search Group". Out-of-the-box there are two Code Search Groups: "sn_codesearch.Default Search Group" and "sn_devstudio.Studio Search Group".

The default search group for Studio is sn_devstudio.Studio Search Group. Looking at the Code Search Table records, you might notice that it only contains 21 records (tables) and that those records mainly contain search fields for the name, a condition, and a script. Did you know, that a fresh out-of-the-box Utah PDI contains 4,604 tables? There's way more to search than just these 21 tables! Another thought, why limit the search only to fields for the name, a condition, and a script? You could potentially search way more.

Expanding Code Search Tables and Fields

Unfortunately the default Code Search Group (and its Code Search Tables) for Studio cannot be edited because the application is Private. You can add new Code Search Tables though. Another option is creating your own custom Code Search Group and Code Search Tables. You could tweak this completely to your company, your desires on what to search for, or perhaps you also have custom tables and fields that you want to include in searches. While you could do so easily, doing such manually can be time-consuming. To expand Code Search for customers, I've created a script that can generate a new Code Search Group or expand an existing Code Search Group. In the script, I've added as much as possible script type fields, condition fields, etcetera. Basically it concerns Dictionary Entries for this encoded query:

internal_type.nameINhtml_script,condition,condition_string,script,script_client,script_plain,script_server,xml^ORelement=reference_qual^ORelement=calculation^nameNOT LIKEvar__m_^nameNOT LIKEsys_client_interaction^active=true^NQelementSTARTSWITHscript^ORelementLIKE_script^internal_type.nameSTARTSWITHstring^nameNOT LIKEvar__m_^nameNOT LIKEsys_client_interaction^active=true^NQname=sys_variable_value^element=value

Note: Currently the script only queries for Dictionary Entries in the global application scope only.

Pasting the code and maintaining it here is the most sustainable, so I've added the script to Share. From there I will update it if necessary, and everyone is able to download the script for free.

Only thing for you to do:1) Decide if you want to expand an existing Code Search Group or create a new one. This can be done by editing the value on line 4.2) Decide if the Dictionary entries listed suite your situation, or that you might want to add more or perhaps less. This can be done by editing the encoded query on line 5.

3) Run the Fix Script.
